High Mobility Multipurpose Wheeled Vehicle - HMMWV or Humvee

The High Mobility Multipurpose Wheeled Vehicle (HMMWV or Humvee) is a military 4WD motor vehicle created by AM General. It has largely supplanted the roles formerly served by smaller Jeeps such as the M151 1/4 ton MUTT, the M561 "Gama Goat", their M718A1 and M792 ambulance versions, the CUCV, and other light trucks. Primarily used by the United States military, it is also used by numerous other countries and organizations and even in civilian adaptations. The Hummer series was also inspired by the HMMWVs.

Features

Pedestal Mounted Stinger platforms, MRQ-12 direct The High Mobility Multi-Purpose Wheeled Vehicle (HMMWV) uses independent suspensions and portal geared hubs similar to portal axles to make for a full 16 inches of ground clearance. The vehicle also has disc brakes on all 4 wheels, and 4-wheel double-wishbone suspension. The brake disks are not mounted at the wheels as on conventional automobiles, but inboard mounted disk brakes, which are attached to the outside of each differential. The front and rear differentials are Torsen type, and the center differential is regular, lockable type. There are at least 17 variants of the HMMWV in service with the United States armed forces. HMMWVs serve as cargo/troop carriers, automatic weapons platforms, ambulances (four litter patients or eight ambulatory patients), M220 TOW missile carriers, M119 howitzer prime movers, M1097 Avengerair support vehicles, S250 shelter carriers, and other roles. The HMMWV is capable of fording 2.5 ft (76 cm) normally, or 5 ft (1.5 m) with the deep-water fording kits installed.


A HMMWV firing a TOW missile.

Optional equipment includes a winch (maximum load capacity 6,000 lb (2,700 kg)) and supplemental armor. The M1025/M1026 and M1043/M1044 armament carriers provide mounting and firing capabilities for the MK19 grenade launcher, the M2 heavy machine gun, the M240G/B machine gun and M249 SAW. The newly introduced M1114 "up-armored" HMMWV also features a similar weapons mount. In addition, some M1114 and M1116 up-armored and M1117 Armored Security Vehicle models feature a Common Remotely Operated Weapon System (CROWS), which allows the gunner to operate from inside the vehicle, and/or the Boomerang anti-sniper detection system. Recent improvements have also led to the development of the M1151 model, which is quickly rendering the previous models obsolete. By replacing the M1114, M1116, and earlier armored HMMWV types with a single model, the U.S. Army hopes to lower maintenance costs.

 HMMWV with bolt-on MAK armor kit

Humvee equipped with four snow treads



 HMMWV equipped with Raytheon surface-to-air missiles

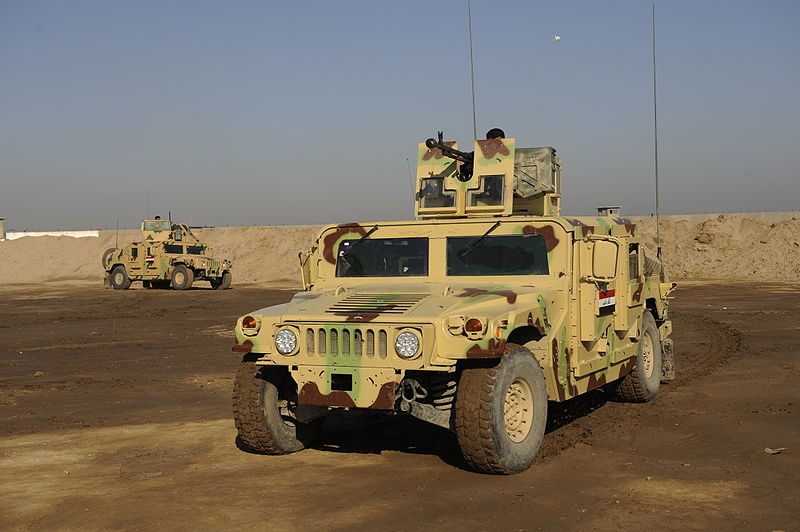

 Iraqi HMMWVs at Camp Echo in Iraq



 Iraqi HMMWVs at Camp Echo in Iraq

A Saudi Arabian HMMWV with a QCB machine gun mounted on top depart for the seaport of Mogadishu in Somalia. The Saudis are providing support for UNOSOM II.
